# Different Types of Oscillators with Working and Applications

Let’s get started with types of oscillators, how they work? and what are the common applications of oscillators.

### What is Oscillator?

Oscillators are electronic circuits that generate periodic waveforms from a DC source without any external input signal. They are widely used in various applications, including clocks, radios, computers, and signal processing.

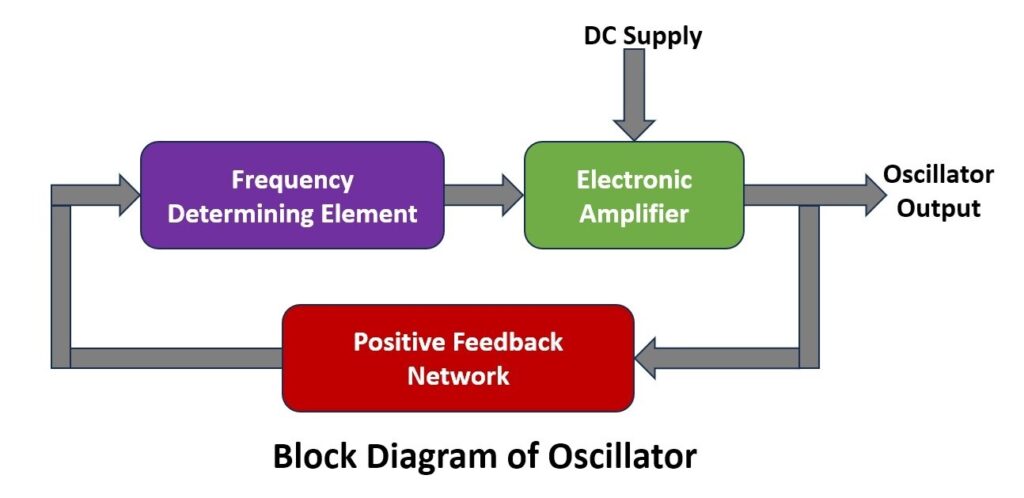

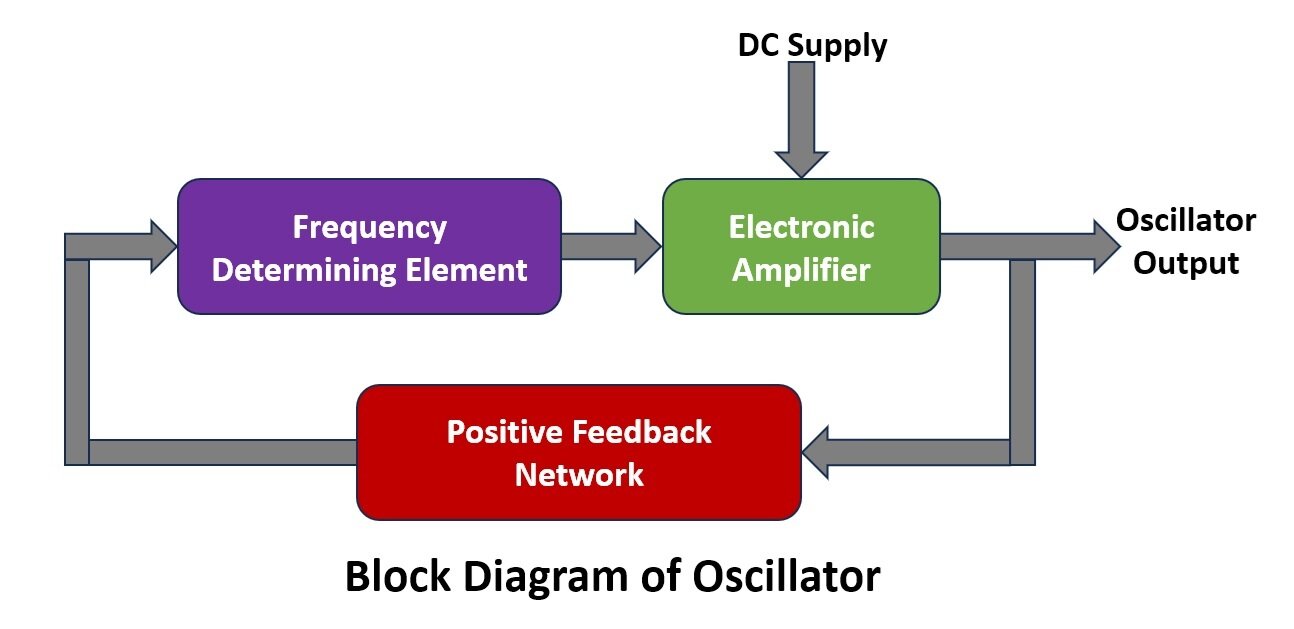

### Working of Oscillator:

The basic principle behind an oscillator involves a feedback loop that amplifies a signal and feeds a portion of it back into the input. This process can be broken down into several key components:

1. Amplifier: The amplifier is a crucial part of the oscillator circuit. It amplifies the signal to a certain level, compensating for any losses that may occur in the circuit. The amplifier must provide enough gain to ensure that the signal can sustain itself.
2. Feedback Network: The feedback network determines the frequency of oscillation and shapes the waveform. It typically consists of passive components like resistors, capacitors, and inductors, which filter and control the feedback signal. For sustained oscillation, the feedback signal must be in phase with the original signal and have sufficient amplitude.
3. Oscillation Condition: For a circuit to oscillate, it must satisfy the Barkhausen criterion, which states that the product of the loop gain and the feedback must be equal to one (|Aβ| = 1), and the total phase shift around the loop must be zero or an integer multiple of 360 degrees.
4. Frequency Determination: The frequency of the output signal is primarily determined by the components in the feedback network. In an LC oscillator, the inductance (L) and capacitance (C) determine the resonant frequency. In an RC oscillator, the resistor and capacitor values set the frequency.

### Classifications of Oscillators:

Oscillators can be classified on the basis of following criteria.

1. Feedback Mechanism: Includes Positive Feedback Oscillators and Negative Feedback Oscillators.
2. Output Waveform Shape: Encompasses Sine Wave Oscillators, Square or Rectangular Wave Oscillators, and Sweep Oscillators, which generate a saw-tooth waveform.
3. Output Signal Frequency: Comprises Low-Frequency Oscillators, Audio Oscillators (with frequencies in the audible range), Radio Frequency Oscillators, High-Frequency Oscillators, Very High-Frequency Oscillators, and Ultra High-Frequency Oscillators.
4. Frequency Control Type: Covers RC Oscillators, LC Oscillators, and Crystal Oscillators, the latter of which uses a quartz crystal to stabilize the output frequency.
5. Nature of Output Frequency: Includes Fixed Frequency Oscillators and Variable or Tunable Frequency Oscillators.

### Types of Oscillators:

Here is a list of common types of oscillators:

### 1. Sine Wave Oscillators:

• LC Oscillators: Use inductors (L) and capacitors (C) to determine the frequency.
• Colpitts Oscillator
• Hartley Oscillator
• Clapp Oscillator
• RC Oscillators: Use resistors (R) and capacitors (C) to determine the frequency.
• Crystal Oscillators: Use the mechanical resonance of a vibrating crystal of piezoelectric material to create a stable frequency.
• Quartz Crystal Oscillator

### 2. Square Wave Oscillators:

• Astable Multivibrator: A simple type of oscillator that produces a continuous square wave output.
• Schmitt Trigger Oscillator: Uses a Schmitt trigger to generate a square wave output.

### 3. Sawtooth and Triangle Wave Oscillators:

• Relaxation Oscillator: Generates a sawtooth or triangular waveform.
• Integrator-Differentiator Oscillator

### 4. Voltage Controlled Oscillators (VCO):

• LC VCO: Frequency determined by an LC circuit and controlled by an input voltage.
• RC VCO: Frequency determined by an RC circuit and controlled by an input voltage.

### 5. Digital Oscillators:

• Ring Oscillator: Consists of an odd number of inverters in a loop.
• Numerically Controlled Oscillator (NCO): Uses digital circuitry to generate a frequency.

### 6. Other Types of Oscillators:

• Gunn Diode Oscillator: Uses the Gunn effect in semiconductors to generate microwave frequencies.
• Negative Resistance Oscillators: Utilize components like tunnel diodes or Gunn diodes that exhibit negative resistance characteristics.
• Pearson-Anson Oscillators: Generate stable sine waves using a transformer-coupled LC circuit.
• Delay-Line Oscillators: Utilize a delay line to create a feedback loop, producing a consistent frequency.
• Ring Oscillators: Consist of an odd number of inverters connected in a loop, generating a periodic signal.
• Pierce Oscillators: A crystal oscillator circuit that provides high frequency stability using a quartz crystal.
• Royer Oscillators: A type of oscillator that generates high-frequency signals using a transformer and two transistors.
• Electron Coupled Oscillators: Use electron beams for coupling and frequency control in microwave signal generation.
• Dynatron Oscillators: Utilize the negative resistance region of a tetrode tube to produce oscillations.
• Multi-Wave Oscillators: Capable of generating multiple waveforms, often used in audio and RF applications.
• Armstrong Oscillator: A feedback oscillator using an inductor and a capacitor, known for producing stable RF signals.
• Meissner Oscillators: A feedback oscillator circuit with a resonant LC circuit for generating sinusoidal waveforms.
• Opto-Electronic Oscillators: Use optical components and electronic feedback to generate very stable frequencies.
• Tuned Collector Oscillator: A transistor oscillator with a tuned LC circuit in the collector, producing sinusoidal outputs.
• Cross-Coupled Oscillators: Utilize cross-coupled transistors to maintain oscillations, commonly used in differential circuits.
• Robinson Oscillators: Known for precise frequency control, often used in radio frequency applications.
• Tri-Tet Oscillators: Combine a tetrode and a triode in an oscillator circuit for frequency generation and stability.

These types of oscillators vary in complexity, frequency stability, waveform purity, and application suitability.

### Applications of Oscillators:

Oscillators have a wide range of applications across various fields. Here are some key uses:

1. Communication Systems: Used in transmitters and receivers for generating carrier waves in radios, televisions, and mobile phones.
2. Signal Generators: Employed in testing and development to produce signals with precise frequency and waveform characteristics.
3. Clock Generation: Provide timing signals for digital systems, including computers, microcontrollers, and synchronization in networks.
4. Audio Equipment: Serve as tone generators in music synthesizers, audio signal processing, and public address systems.
5. Measurement and Instrumentation: Used in frequency counters, oscilloscopes, and function generators for accurate frequency and signal analysis.
6. Power Conversion: Integral in power supply units and inverters, converting DC to AC power at specific frequencies.
7. Medical Devices: Utilized in medical imaging equipment, such as MRI and ultrasound machines, for signal generation and processing.
8. Navigation Systems: Essential in GPS and radar systems for generating precise timing signals.
9. Remote Sensing and Control: Employed in remote control systems and in sensors for applications like automotive radar and environmental monitoring.
10. Research and Development: Used in scientific research for experiments requiring precise frequency and phase control, such as in particle accelerators and spectroscopy.

These applications leverage the ability of oscillators to generate consistent, stable, and precise frequencies, making them essential components in both everyday devices and advanced technological systems.

### Conclusion:

Oscillators are fundamental components in modern technology, serving a crucial role in a wide range of applications from communication systems to medical devices. Their ability to generate precise and stable frequencies makes them indispensable in both everyday electronics and advanced scientific equipment. As technology continues to evolve, the importance of oscillators in ensuring reliable signal generation, timing, and frequency control will only grow, solidifying their place as a cornerstone in the development and functioning of electronic systems.
